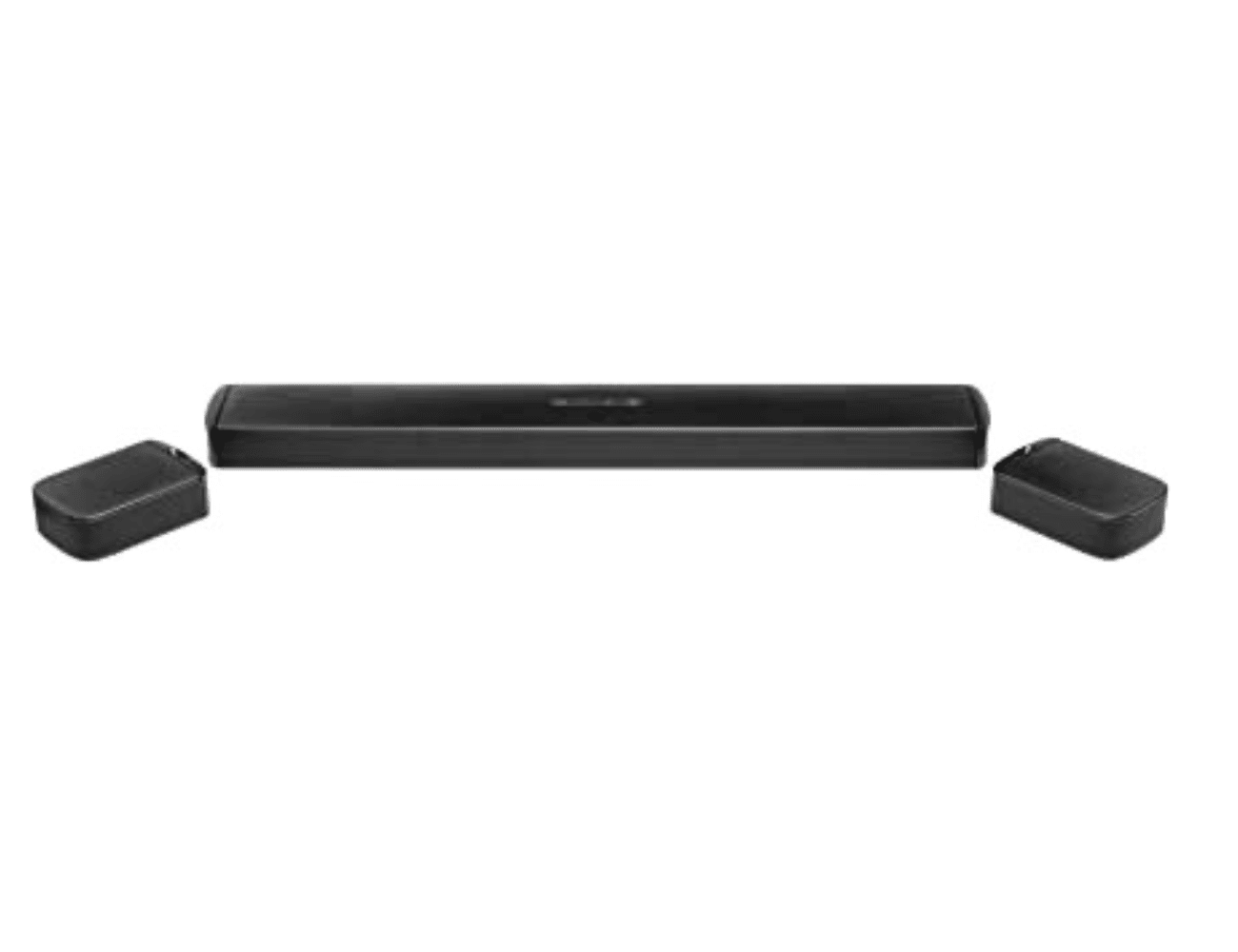

JBL BAR 9.1 True Wireless Surround with Dolby Atmos®

🎶 General

• Model: JBL BAR 9.1 True Wireless Surround

• Channels: 5.1.4

• Total Power Output: 820 W (THD 1%)

  • Soundbar: 400 W

  • Subwoofer: 300 W

  • Detachable rear speakers: 2 × 60 W

• Power Supply: 100 – 240 V AC, 50/60 Hz

• Battery Charging Time (for detachable surrounds): ~3 hours

🔊 Drivers / Speakers

Soundbar:

• 4 × racetrack woofers (front)

• 2 × up‑firing full‑range drivers (for height effects)

• 3 × 0.75″ (20 mm) tweeters

Detachable Surround Speakers (each):

• 1 × up‑firing full‑range driver

• 1 × tweeter

Subwoofer:

• Wireless 10″ subwoofer

📡 Connectivity

• HDMI:

  • 1 × HDMI Input

  • 1 × HDMI eARC Output (for high‑quality Dolby Atmos passthrough)

  • HDCP Version: 2.3

• Optical digital input

• Bluetooth 4.2 (for wireless streaming)

• Wi‑Fi: supports built‑in Chromecast & AirPlay 2

• USB‑A: (depends on region — usually for playback/service)

🎵 Audio Features

• Dolby Atmos support

• DTS:X support

• 4K pass‑through with Dolby Vision support

• Wireless music streaming (Bluetooth, Chromecast, AirPlay 2)

📏 Dimensions & Weights

Soundbar:

• Size: 884 × 62 × 120 mm

• Weight: 3.64 kg

Each Detachable Surround Speaker:

• Size: 173 × 60 × 120 mm

• Weight (each): 0.72 kg

Subwoofer:

• Size: 305 × 440 × 305 mm

• Weight: 11.10 kg

🌡️ Other

• Operating Temperature: 0 °C – 45 °C

• Automatic standby power‑off
